Build applications with oneDAL

This section contains instructions for building applications with oneDAL for SYCL*.

Applications on Linux* OS

  1. Install oneDAL.

  2. Set environment variables by calling <install dir>/setvars.sh.

  3. Build your application with dpcpp:

    • Add oneDAL includes folder:

      -I<install dir>/dal/latest/include

    • Add oneDAL libraries. Choose the appropriate oneDAL libraries based on oneDAL threading mode and linking method:

      oneDAL libraries for Linux

      Single-threaded (non-threaded)

      Multi-threaded (internally threaded)

      Static linking
      libonedal_core.a,
      libonedal_dpc.a,
      libonedal_sequential.a
      libonedal_core.a,
      libonedal_dpc.a,
      libonedal_thread.a

      Dynamic linking
      libonedal_core.so,
      libonedal_dpc.so,
      libonedal_sequential.so
      libonedal_core.so,
      libonedal_dpc.so,
      libonedal_thread.so

    • Add an additional oneDAL library:

      <install dir>/dal/latest/libintel64/libonedal_sycl.a

Applications on Windows* OS

  1. Install oneDAL.

  2. In Microsoft Visual Studio* Integrated Development Environment (IDE), open or create a C++ project for your oneDAL application to build.

  3. In project properties:

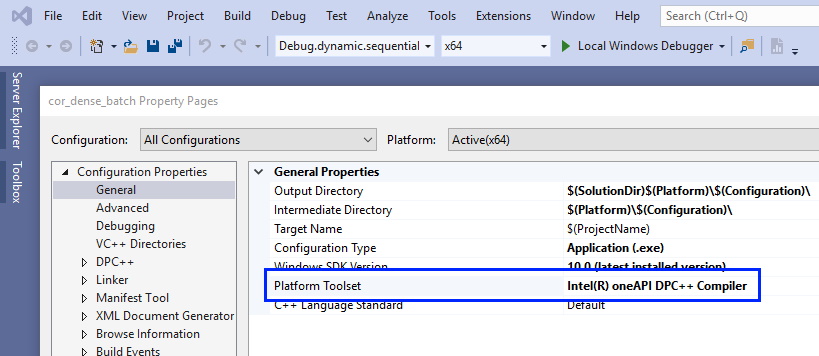

    • Set Intel® oneAPI DPC++/C++ Compiler platform toolset:

      In General configuration properties, choose Platform Toolset property

    • Add oneDAL includes folder to Additional Include Directories.

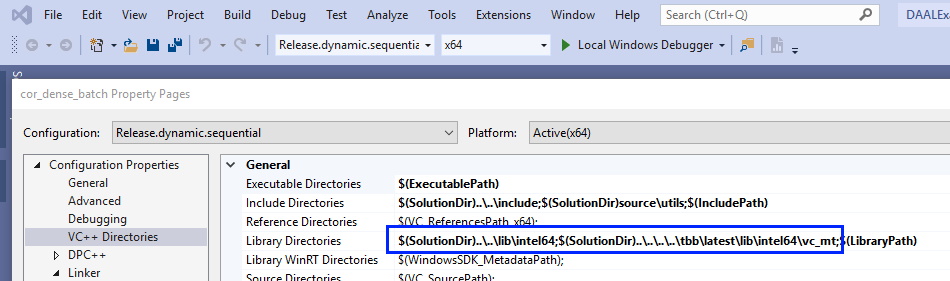

    • Add folders with oneDAL and oneTBB libraries to Library Directories:

      In VC++ Directories, choose Library Directories property

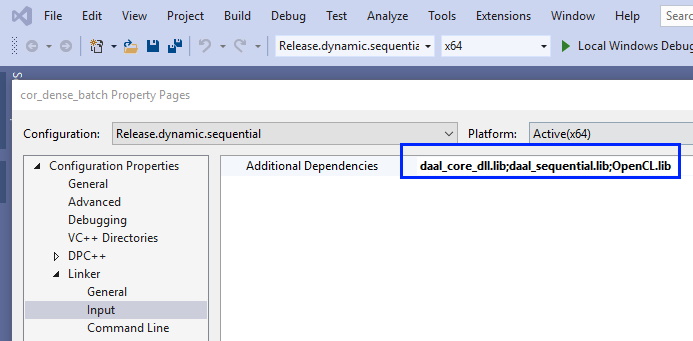

    • Add oneDAL and OpenCL libraries to Additional Dependencies:

      In Linker configuration properties, choose Input.

  4. Add the appropriate libraries to your project based on oneDAL threading mode and linking method:

    oneDAL libraries for Windows

    Single-threaded (non-threaded)

    Multi-threaded (internally threaded)

    Static linking
    onedal_core.lib,
    onedal_sequential.lib
    onedal_core.lib,
    onedal_thread.lib

    Dynamic linking

    onedal_core_dll.lib

    onedal_core_dll.lib

    You may also add debug versions of the libraries based on the threading mode and linking method:

    oneDAL debug libraries for Windows

    Single-threaded (non-threaded)

    Multi-threaded (internally threaded)

    Static linking
    onedal_cored.lib,
    onedald.lib,
    onedal_dpcd.lib,
    onedal_sycld.lib,
    onedal_sequentiald.lib
    onedal_cored.lib,
    onedald.lib,
    onedal_dpcd.lib,
    onedal_sycld.lib,
    onedal_threadd.lib

    Dynamic linking
    onedal_cored_dll.lib (onedal_cored_dll.1.lib),
    onedald_dll.lib (onedald_dll.1.lib),
    onedal_dpcd_dll.lib (onedal_dpcd_dll.1.lib),
    onedald.1.dll,
    onedal_cored.1.dll,
    onedal_dpcd.1.dll,
    onedal_sequentiald.1.dll
    onedal_cored_dll.lib (onedal_cored_dll.1.lib),
    onedald_dll.lib (onedald_dll.1.lib),
    onedal_dpcd_dll.lib (onedal_dpcd_dll.1.lib),
    onedald.1.dll,
    onedal_cored.1.dll,
    onedal_dpcd.1.dll,
    onedal_threadd.1.dll

Examples

Dynamic linking, Multi-threaded oneDAL:

dpcpp my_first_dal_program.cpp -Wl,
--start-group -L<install dir>/dal/latest/lib/intel64 -lonedal_core -lonedal_dpc -lonedal_thread -lpthread -ldl -lOpenCL -L<install dir>/tbb/latest/lib/intel64/gcc4.8 -ltbb -ltbbmalloc <install dir>/dal/latest/lib/intel64/libonedal_sycl.a -Wl,--end-group

Static linking, Single-threaded oneDAL:

dpcpp my_first_dal_program.cpp -Wl,
--start-group <install dir>/dal/latest/lib/intel64/libonedal_core.a <install dir>/dal/latest/lib/intel64/libonedal_dpc.a <install dir>/dal/latest/lib/intel64/libonedal_sequential.a -lpthread -ldl -lOpenCL <install dir>/dal/latest/lib/intel64/libonedal_sycl.a -Wl,--end-group
